| Complete Display

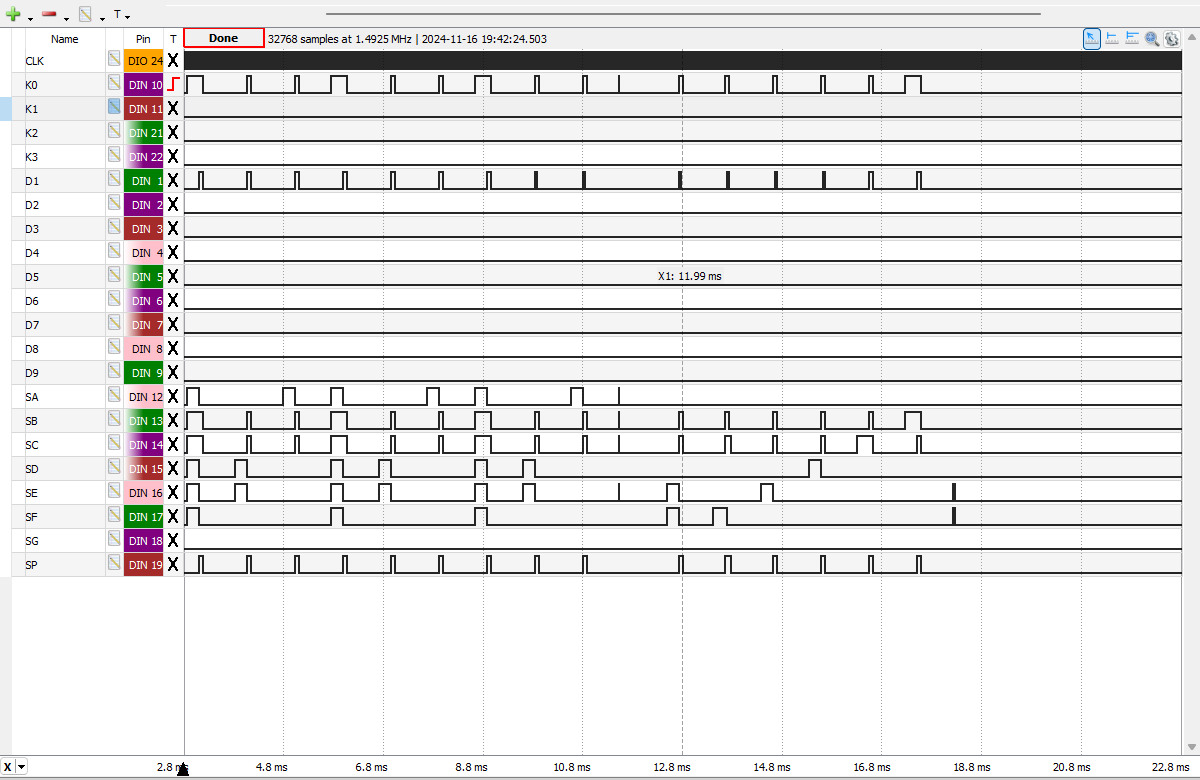

and Keyboard Scanning Cycle of the µPD941 from a MBO de Luxe I
manufactured in December 1975 pressing the [=] key (SB#K0) while displaying "1." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD941 Clock Frequency at 50 kHz.  |
