Additional Pictures

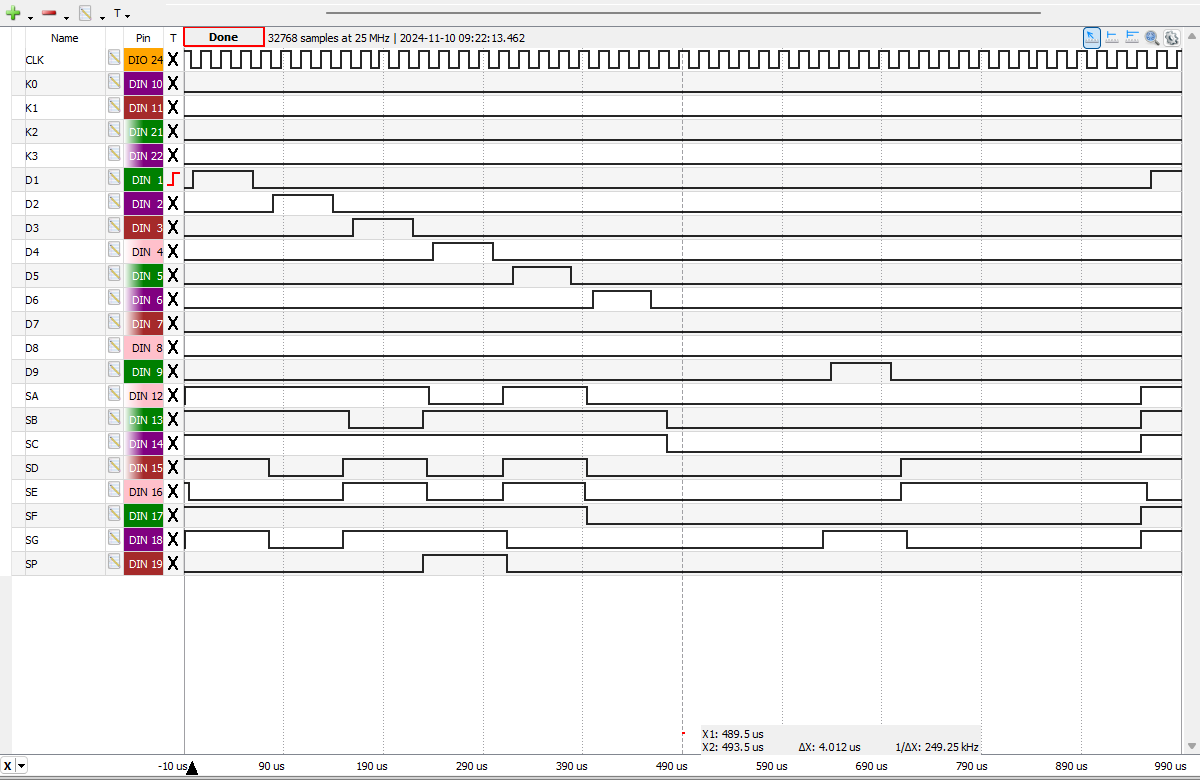

Complete Display Scanning Cycle of the µPD943 from a Royal 90K (Model UA120) manufactured in November 1975 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD943 Clock Frequency at 50 kHz.

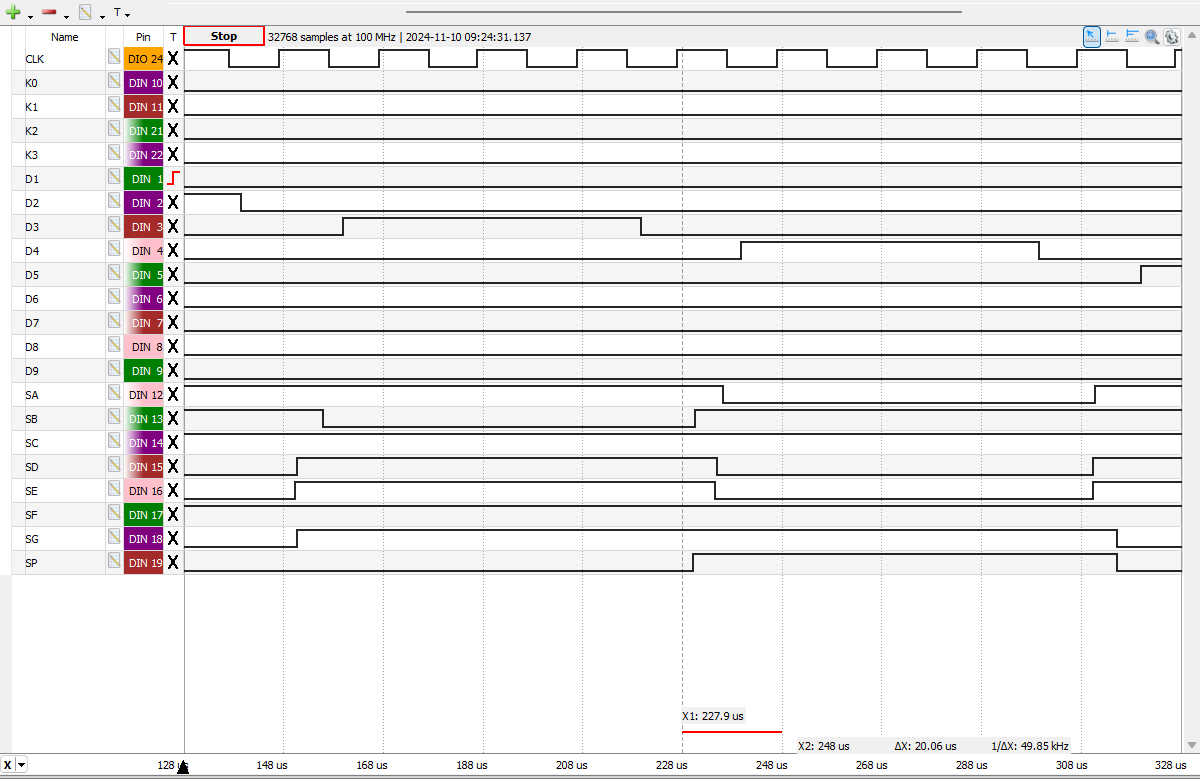

Close-up view of the transition between Digit D3 displaying "6" and Digit D4 displaying "4" of the µPD943 showing the Leading and Trailing Digit Blanking Times.
