Additional Pictures
| Complete Display and Keyboard

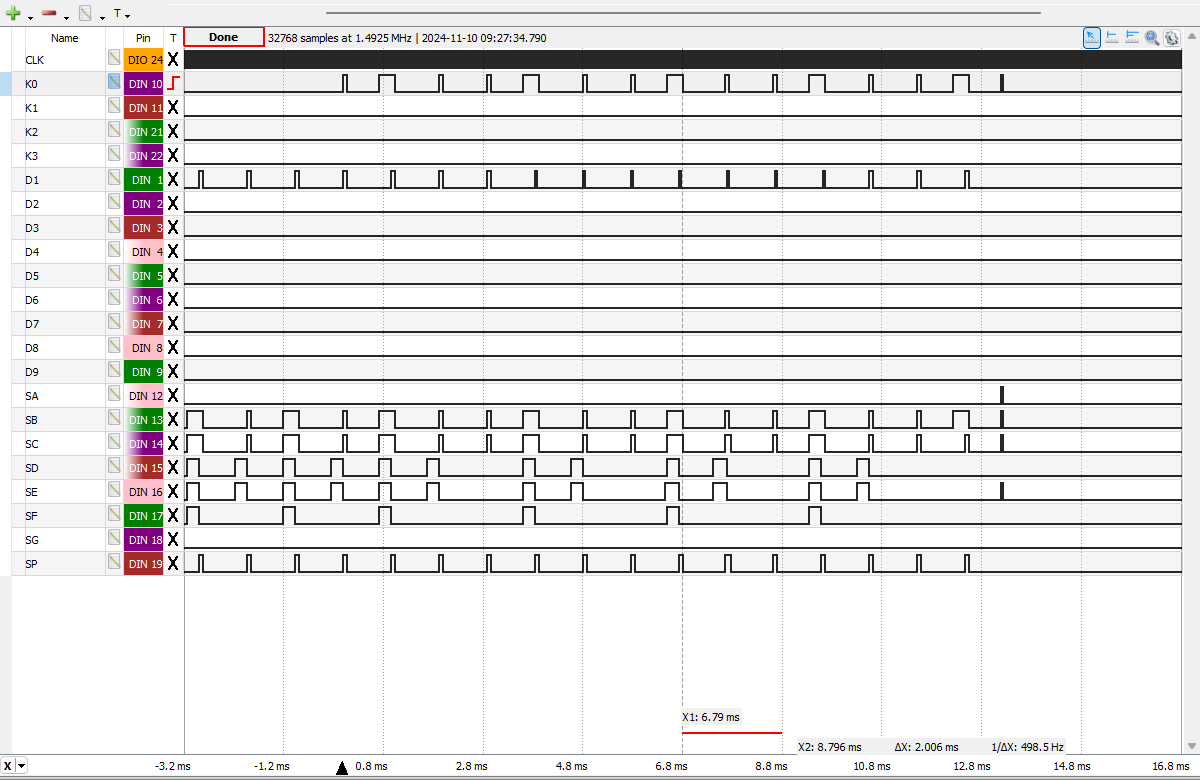

Scanning Cycle of the µPD943 from a Royal 90K (Model UA120) manufactured in
November 1975 pressing the [=] key (SB#K0) while displaying "1." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD943 Clock Frequency at 50 kHz.  |
If you have additions to the above article please email: joerg@datamath.org.
