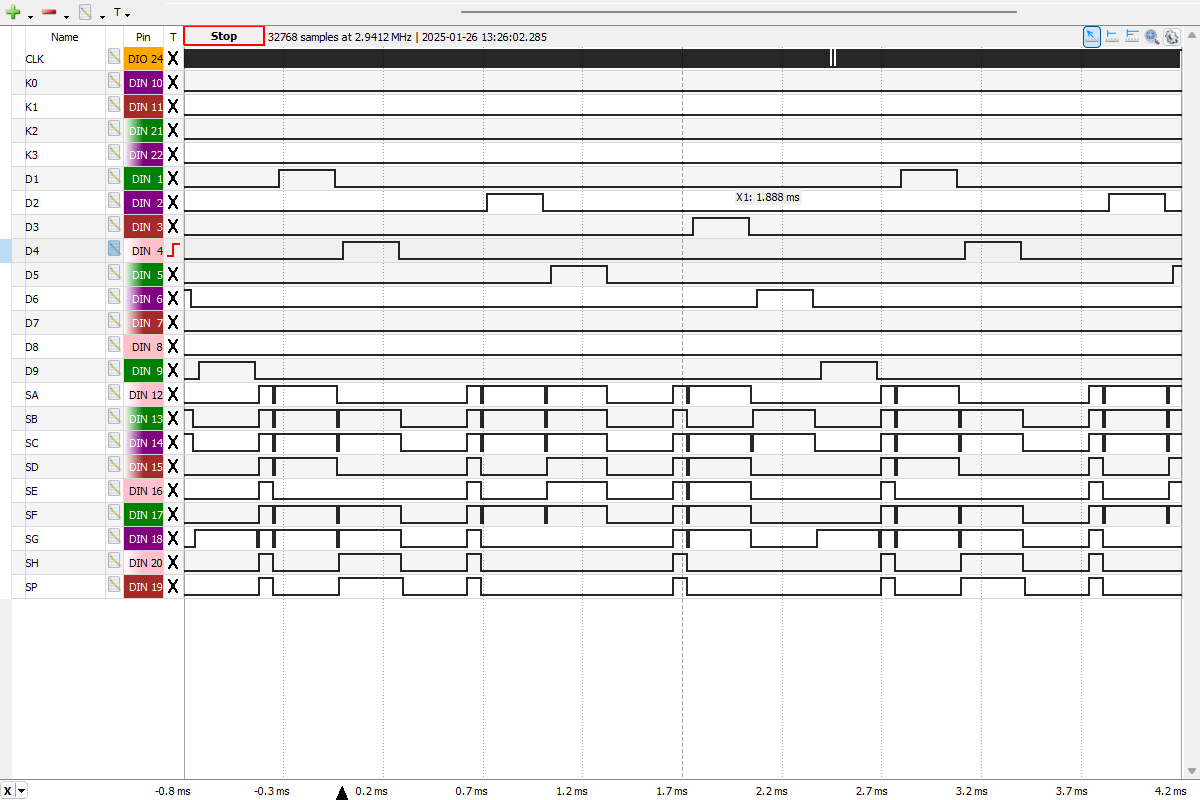

Complete Display Scanning Cycle of the µPD946 from a Royal RSC-40 manufactured in March 1976 displaying "-104.679"
and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD946 Clock Frequency at 50 kHz.

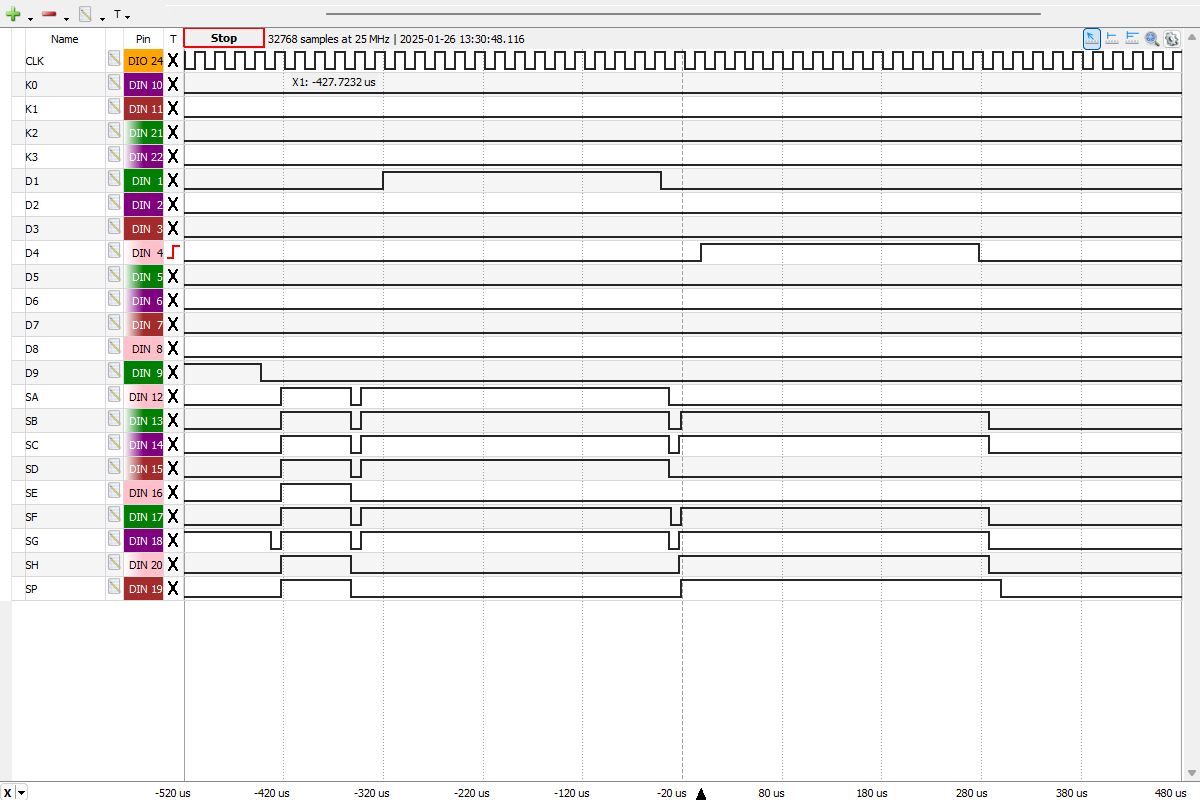

Close-up view of the transition between Digit D1 displaying "9" and Digit D4 displaying "4" of the µPD946 showing the Leading and Trailing Digit Blanking Times.
