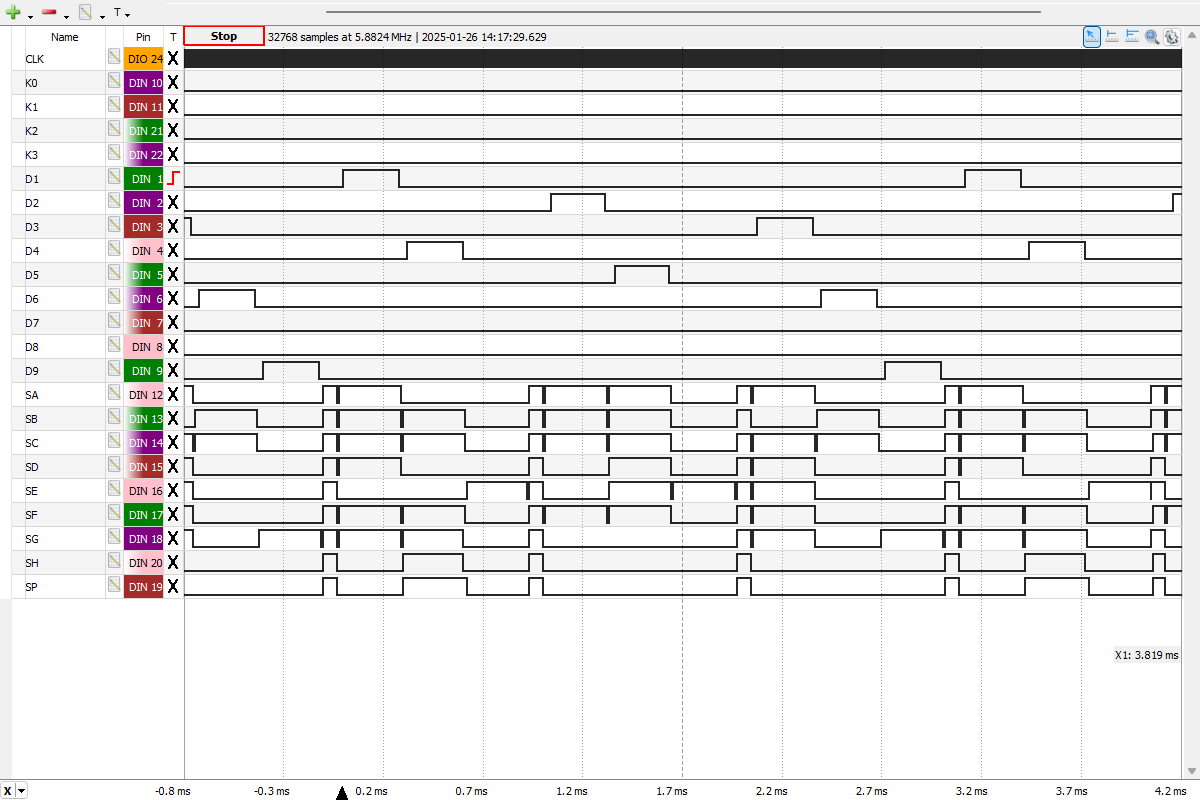

Scanning Cycle of the µPD947 from a Royal 91K (Model UA122)
manufactured in September 1975 displaying "-104.679" and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD947 Clock Frequency at 50 kHz. |
Close-up view of the
transition between Digit D1 displaying "9" and Digit D4 displaying "4" of the
µPD947
showing the Leading and Trailing Digit Blanking
Times.
|
