Additional Pictures

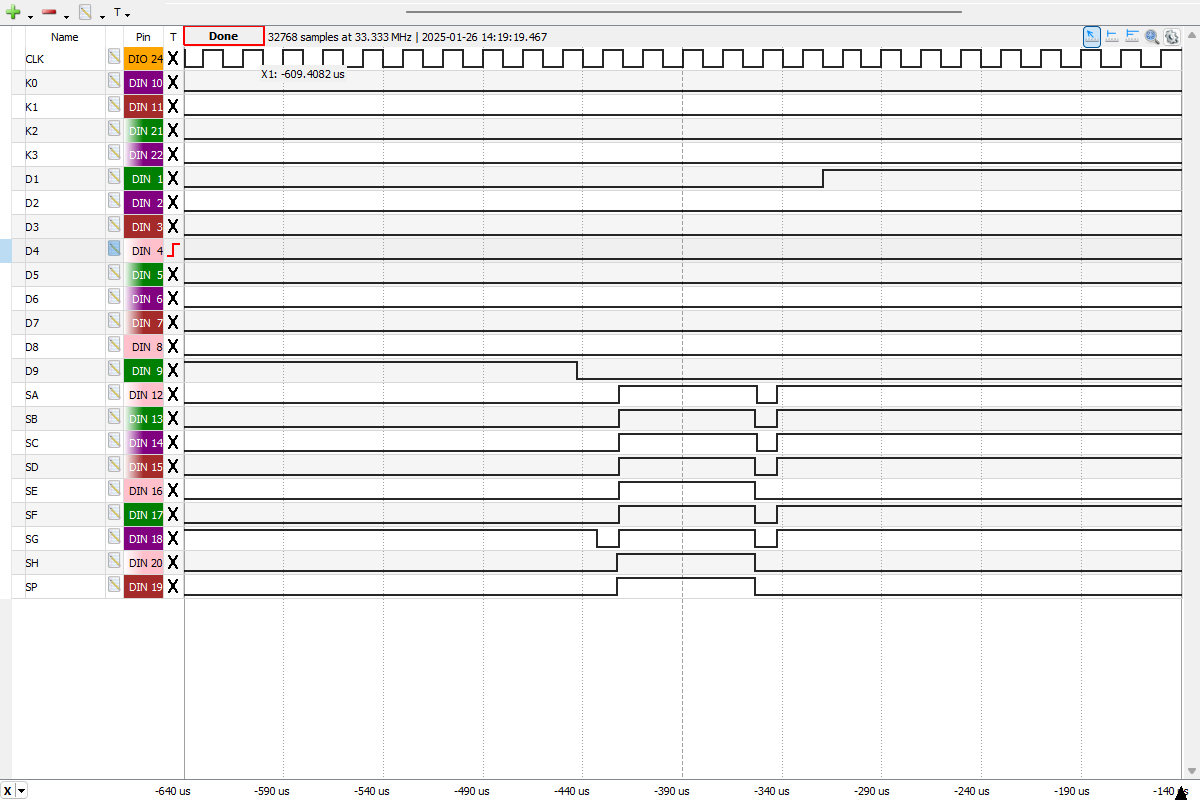

| Short pause
between Digits D9 and D1 of Display and Keyboard
Scanning Cycle of the µPD947 from a Royal 91K (Model UA122) manufactured in
September 1975 and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD947 Clock Frequency at 50 kHz.  |
| Complete Display and Keyboard
Scanning Cycle of the µPD947 from a Royal 91K (Model UA122) manufactured
in September 1975 pressing the [2] key (SB#K0) while displaying "2." and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD947 Clock Frequency at 50 kHz.  |

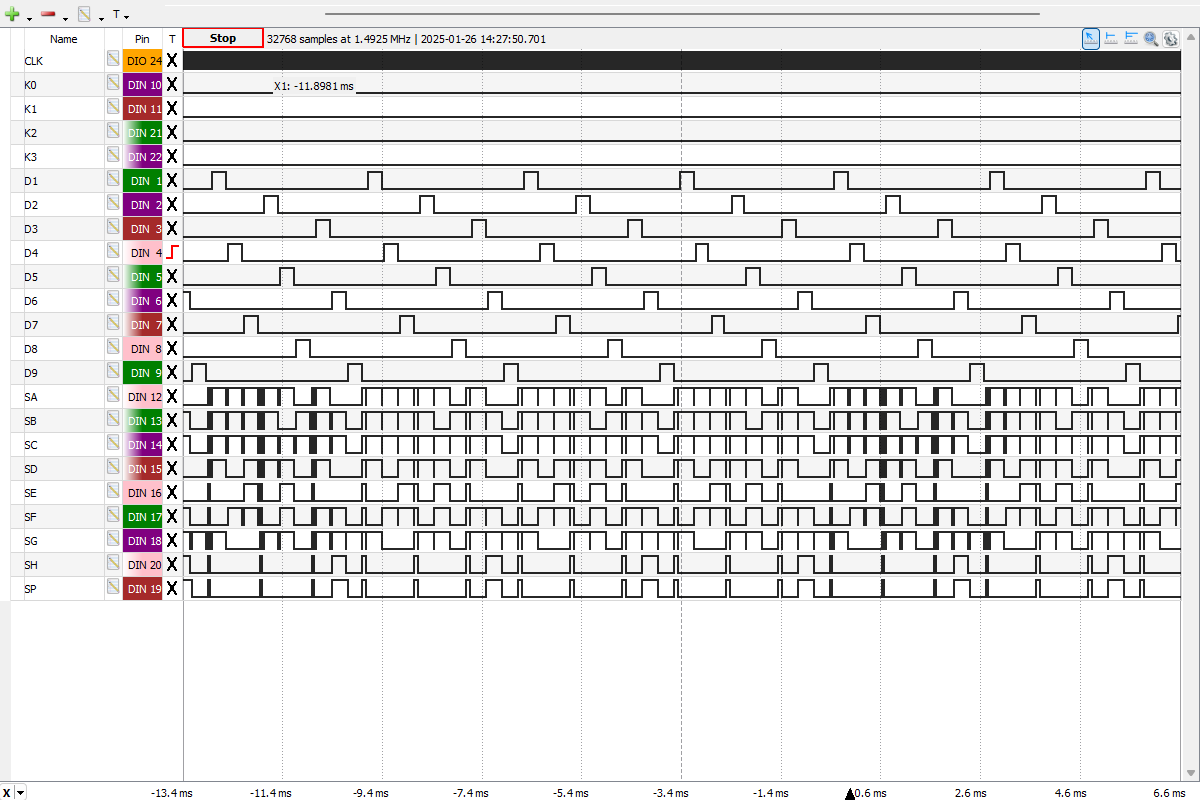

| Six complete
Display and Keyboard Scanning Cycles of the µPD947 from a Royal 91K (Model
UA122) manufactured in September 1975 and captured with the Digilent Digital Discovery connected to the DCM-50A Platform. µPD947 Clock Frequency at 50 kHz.  |
