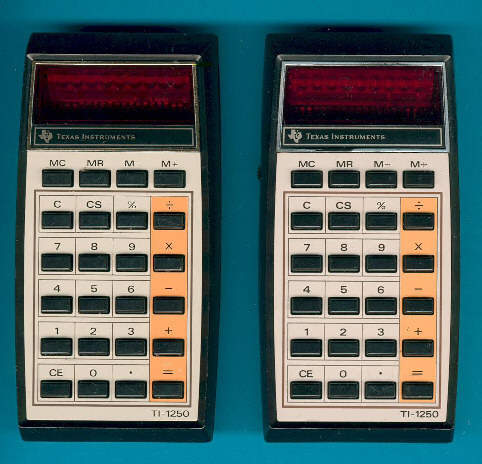

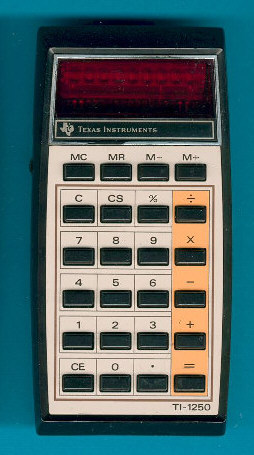

Texas Instruments TI-1250 (Version 3, Style 4B)
| Date of introduction: | March 1976 | Display technology: | LED-stick |
| New price: | Display size: | 8 | |
| Size: | 5.5" x 2.8" x 1.4" 138 x 70 x 35 mm3 |
||
| Weight: | 3.9 ounces, 110 grams | Serial No: | B 0252166 |
| Batteries: | 9V | Date of manufacture: | wk 49 year 1976 |
| AC-Adapter: | AC9180 | Origin of manufacture: | USA (LTA) |
| Precision: | 8 | Integrated circuits: | TMS0972 |
| Memories: | 1 | ||
| Program steps: | Courtesy of: | Joerg Woerner | |
| Download manuals: |
(US: 2.5M Bytes)
(EU: 3.5M Bytes) |
The
TMS0952 introduced with the original design of the
TI-1200 and TI-1250 was soon replaced with the
TMS0972, a pin-compatible design dropping the additional resistors and capacitor and further reducing the manufacturing costs of the TI-1200 series.
Dismantling
the featured TI-1250 with
Date code 4976 LTA and manufactured in
December 1976
in Lubbock, Texas reveals a very efficient and cost-optimized design
with a single-sided printed circuit board (PCB) centered
around a TMS0972 single-chip
calculator circuit based
on the TMS1000,
the World's first Microcomputer.
The final step of cost reduction of the
TI-1200/TI-1250 family was introduced just a
few months before its discontinuation and included a smaller encapsulation of
the TMS0972 Chip. While the original design was using a 0.6” wide 28-pin DIP (Plastic Dual In-line Package with a 0.1” / 2.54 mm lead pitch)
encapsulation,
switched the final design to a 0.4” wide 28-pin SPDIP (Shrink Plastic Dual In-line Package with a 0.07” / 1.778 mm lead pitch)
encapsulation.
Learn
more about the evolution of the TI-1250 between
June 1975 and its discontinuation in 1977.
Learn more about the different
Product Labels used with the TI-1250
- here at the Datamath Calculator Museum we classify the featured TI-1250 as
Hardware Version 3, PCB Type 2 and Product Label Style 4, B-Series.
