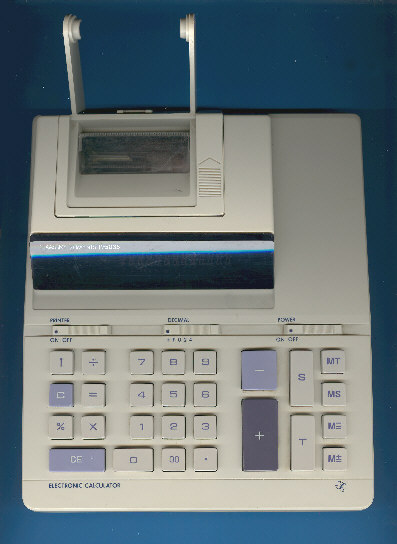

Texas Instruments TI-5035

Date of introduction:  1985 Display technology:  Fluorescent
New price:  $70.00 (SRP 1988) Display size:  12
Size:  8.0" x 7.3" x 1.6" Printer technology:  Impact red/black
Weight:  1 pound 2 ounces Serial No:  009640
Batteries:  4*AA Date of manufacture:  mth 12 year 1988
AC-Adapter:  AC9175, AC9201E, AC9900/Z3 Origin of manufacture:  Taiwan (I)
Precision:  12 Integrated circuits:  Mitsubishi M58347P
Memories:  1 + 1
Program steps:   Courtesy of:  Joerg Woerner
Download leaflet:   (US: 0.6 MByte)

This TI-5035 is a sibbling of the TI-5030 II. The housing and internal construction of the original TI-5032 was used with a complete line of very similiar calculators:

Model

Introduction

Integrated Circuit

Capabilities

TI-5030

1983 Mitsubishi M58349P 10 digits
TI-5030 II 1984 Mitsubishi M58345AP 12 digits
TI-5032 1983 t.b.d. 10 digits
TI-5032 II
TI-5035 1985 Mitsubishi M58347P 12 digits

TI-5035_PCB.jpg (100911 Byte)The internal construction of the TI-5035 is typical for a Japanese calculator: Only few components fitted without any screws in the bottom shell of the housing.

The printed circuit board of this late TI-5035 was used in the TI-5030 II, too. Unfortunately we don't know their differences.

The TI-5035 was replaced in 1989 with the stylish TI-5033. In 1991 the TI-5035 II changed the design totally..







The TI-5035 is featured in the Texas Instruments Incorporated bulletin CL-866A dated 1985.



horizontal rule

If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, December 17, 2005. No reprints without written permission.
