DATAMATH CALCULATOR MUSEUM

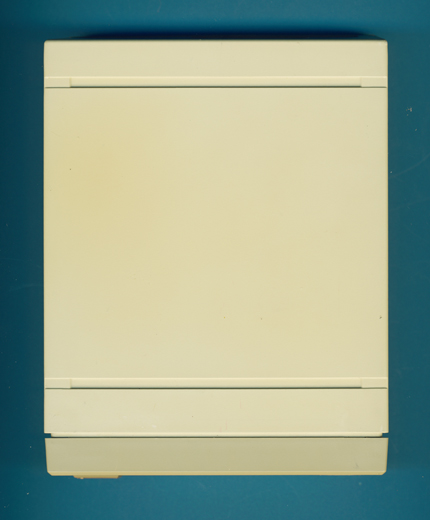

Texas Instruments HX-1100 Video Interface (Prototype)
|Date of introduction:|| Never
|New price:||$99.95 (MSRP 1983)||Display size:|
|Size:|| 5.8" x 4.6" x 1.4"
148 x 118 x 36 mm3
|Weight:||9.5 ounces, 270 grams||Serial No:|
|Batteries:||Date of manufacture:||wk 52 year 1983|
|AC-Adapter:||AC9203||Origin of manufacture:||USA (ATA)|
|Precision:||Integrated circuits:|| CPU: TMC70C20 C14020
ASIC: LSI Logic L1A0037
|Memories:||HEX-BUS Device ID:||40|
|Program steps:||Courtesy of:||Joerg Woerner|
Texas Instruments designed in 1982 with the HEX-BUS a very innovative interface to connect
intelligent peripherals like printers, modems or even a video interface to its new Compact Computer System
CC-40 and planned to use it with the
never released TI-99/8 home computer.
The physical interface of the HEX-BUS is a rather simple 8-pin connector and with peripherals having always two HEX_BUS ports, multiple peripherals can be connected in a daisy-chain mode. The Hardware of the HEX-BUS uses four Data-Signals [D0, D1, D2, D3], two Handshake-Signals [HSK], [BAV] and a common ground signal [GND]. The remaining line was reserved for future use and labeled [FUT]. With the drivers being "open collector", the interface allows bi-directional data communication, each Byte is transmitted in two 4-bit words in a Master/Slave protocol. Texas Instruments published not only the specifications of the HEX-BUS and the software requirements for peripherals, but even offered two different Intelligent Peripheral Bus Controllers (IBC), realized as ASICs (Application Specification Integrated Circuits):
• TI # 1052911, LSI Logic ASIC L1A0037, 22 pin Package
• TP0370, new version, 28 pin package
Texas Instruments dropped out of the home computer market in March 1984 - after selling more than 2.5 million of the famous TI-99/4A - and production of the CC-40 was ceased immediately after. Consequently was the development of the HEX-BUS terminated and only a few of the already announced HEX-BUS peripherals were manufactured in significant quantities. Interesting fact to know: The TI-74 BASICALC and TI-95 PROCALC computers introduced in 1985 as successor of the CC-40 use a 10-pin Dock-Bus which is compatible to the HEX-BUS and added three signals: [RESET] and System Power Distribution In [PI] and Out [PO] to power peripherals from the computer or the computer from peripherals.
Texas Instruments announced or released during the short live of the Compact Computer 40 eight different products like printers, plotters and even a serial interface using the HEX-BUS Interface. Additional peripheral devices were planned or released from Third Party vendors but are not listed as of now in our overview:
Name / Description
|HX-1000||Printer / Plotter 4 colors||$199.95||Series|
|HX-1010||Printer 80 (Thermal ribbon)||$249.95||Series|
|HX-2000||Wafertape Digital Tape Drive||$139.95||Prototype|
|HX-3000/P||RS-232 + Parallel Interface||$124.95||Series|
The HX-1100 Video Interface enables Texas Instruments Compact Computers to display 24 lines of 40 characters, each on a television set using RF channels 3/4 or on a computer monitor using its composite video signal.
this HX-1100 Prototype manufactured in December 1983 by Texas Instruments in their
Abilene, Texas facility and removing the heat sink from one of the Integrated
Circuits (ICs), reveals a very clean design with just one printed circuit board (PCB).
The PCB of the HX-1100 holds all the connectors to the outside world, the video modulator, power supply and illustrates a single-chip microcontroller design with four main building blocks:
CPU (Central processing Unit): The Texas Instruments TMC70C20 microcontroller is a member of the TMS7000 family manufactured in CMOS technology. The original design of the TMS7000 series was introduced in 1981 as an 8-bit extension of the TMS1000 Family to compete with already well established Intel i8051, Motorola M6801, and Zilog Z8 products. The first chips sported 128 bytes of on-chip RAM (Random Access Memory) and either 2k Bytes or 4k Bytes of ROM (Read Only Memory). The featured HX-3100 sports a TMC70C20 with ROM-Code C14020, equipped with 2k Bytes of ROM. Read more about TI Standard Symbolization used in the Eighties with ICs manufactured in a metal–oxide–semiconductor (MOS) process.
IBC (Intelligent Peripheral Bus Controllers): The IBC ASIC (application Specific Integrated Circuit) with TI part number 1059211 was manufactured by LSI Logic in their then state-of-the-art 2 um CMOS process and is marked accordingly with L1A0037 (L1A references to the ASIC family and 0037 is # of the design within the ASIC family).
VDP (Video Display Processor): Texas Instruments introduced already in 1979 with the TMS9918 a very popular Video Display Processor and expanded it later into a family with three different members with added functionality: TMS9918A, TMS9928A, and TMS9929A. The product family was in the Eighties extended with the TMS91xx devices supporting a different mapping of the Video Memory. This HX-1100 Video Interface makes use of a prototype of the TMS9118 variant labeled TMP9118, with the P for Prototype. The TMS9118 series was only used with the TI-994/A and never reached the popularity of the TMS9918 series. We know seven different devices:
|Luminance and Color Difference||None||60 Hz||Yes|
|Luminance and Color Difference||None||50 Hz||Yes|
VRAM (Video Random Access Memory): The TMS9118 Video Display Processor can access up to 16k Bytes of VRAM using a 14-bit VRAM address and supports Dynamic RAMs. This HX-1100 Video Interface Prototype makes use of two Texas Instruments TMS4416-20 Dynamic RAMs with 16k x 4 capacity and 200 ns access time, each.
