Radio Shack 65-504
Date of introduction: | October 2000 | Display technology: | LCD |
New price: | $19.99 (SRP October 2000) | Display size: | 8 |
Size: | 3.0" x 6.2" x
0.30" 75 x 157 x 8 mm3 |
||
Weight: | 3.2 ounces, 91 grams | Serial No: | |
Batteries: | 2*LR43 | Date of manufacture: | mth 10 year 2000 |
AC-Adapter: | Origin of manufacture: | China | |
Precision: | 8 | Integrated circuits: | t.b.d. |
Memories: | 3+1+60 | ||
Program steps: | Courtesy of: | Ken H. Meine | |
Download manual: | (US: 3.5 MByte) |
Radio Shack, acquired by Tandy Corporation in 1963, entered the market of Checkbook Calculators in November with this EC-306. It features Account Manager functionality with three permanent (till you remove the batteries) Memories and started a very successful product line. We discovered as of now seven (w/o counting Tandy versions) different family members:
• 1982: Radio Shack
EC-306 / 65-696, 3 Memories • 1982: Tandy EC-306 / 65-696, 3 Memories • 1987: Radio Shack EC-308 / 65-996, 3 Memories • 1987: Radio Shack EC-430 / 65-570, 3 Memories, Taiwan • 1988: Radio Shack EC-430 / 65-570A, 3 Memories, Thailand • 1996: Radio Shack EC-455 / 65-569, 1 Memory, TAX • 2000: Radio Shack 65-504, 3 Memories, TAX, violet CC keys • 2002: Radio Shack 65-504A, 3 Memories, TAX, blue CC keys |
Dismantling the featured

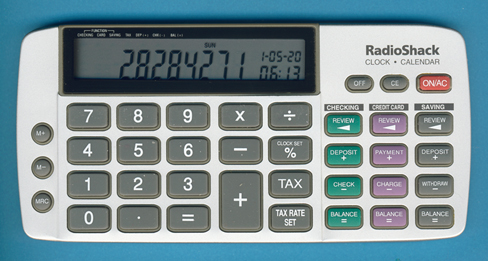

Radio Shack 65-504 Checkbook Calculator manufactured in October 2000 in China reveals a
clean design centered around around an unknown single-chip calculator circuit
mounted in Chip-On-Board (COB) technology directly on the printed circuit board
and hiding under a small epoxy blob. The electronics is powered by two small
LR43 batteries. Learn how to decipher the
10A00
date code on the pictured
calculator.
Inspecting the PCB of this 65-504 manufactured in 2000 brought our attention to a small mark reading
DB-413 REV:4, a reference to Datexx
DB-413, and Revision 4 of the design (schematics and layout).
Learn more about single-chip calculator circuits used in
Account
Manager Calculators.
Don't miss the Corvus
CheckMaster
introduced by Mostek already in 1975. This rare product retains the balance of
your memory even when shut off but uses power-hungry electronics.
If you have additions to the above article please email: joerg@datamath.org.
