National Semiconductor NS103 Data Checker
Date of introduction: | May 1978 | Display technology: | LCD |
New price: | $34.95 (SRP May 1978) | Display size: | 8 |
Size: | 2.8" x 6.0" x 0.30" 71 x 153 x 8 mm3 |
||
Weight: | 2.8 ounces, 79 grams | Serial No: | 2433168 |
Batteries: | 2*LR44 | Date of manufacture: | mth 01 year 1979 |
AC-Adapter: | Origin of manufacture: | Taiwan | |
Precision: | 8 | Integrated circuits: | Mitsubishi M58490P |
Memories: | 3 | ||
Program steps: | Courtesy of: | Joerg Woerner | |
Download manual: | (US: 1.6 MByte) |
National Semiconductor introduced already in May 1978 with the NS103 Data Checker an electronic record keeper with three continuous memories to track bank and charge account balances with dedicated keys:
• Memory 1 [CHK] [DEP] [BAL] [A] • Memory 2 [PMT] [CHG] [BAL] [B] • Memory 3 [PMT] [CHG] [BAL] [C] • Total sum of Memories [GT] |
The NS103 Data Checker makes use of a three-way power switch selecting either floating decimal with manual insertion of the decimal using the [.] key or add mode with the decimal automatically put in the dollars and cents position (0.00).
Dismantling the featured NS103 Data Checker manufactured in January 1979 in Taiwan reveals a clean design centered around a Mitsubishi M58490P single-chip calculator soldered on a single-sided printed circuit board (PCB) circuit powered by just two LR44 batteries.
Please notice the changes of the
Brand Identity of the Data Checker product
line over time.
Inspecting the PCB of this
NS103 manufactured in January 1979 brought our attention to a small mark reading
NS103, obviously a reference to the product name and original Revision
of the design (schematics and layout).
Please find an overview of the
PCB-Marks we discovered
so far on Account Manager calculators.

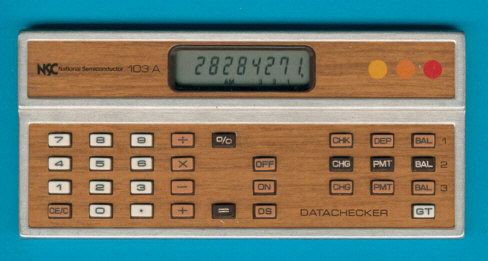

National Semiconductor replaced this model
NS103 soon with the NS103A featuring more convenient
[ON] and [OFF] keys instead the power switch and removing the [A], [B], and [C]
keys from the continuous memories. The early Mitsubishi M58490P chip was
replaced with a NEC uPD1833G circuit that was used with many other Account Manager
calculators like the Canon
Checkbook, IMA
130CBW, Radio Shack EC-306,
Royal LCB 841, Texas Instruments
TI-2200 Checkwriter, and
Unisonic LC 263CK.
Don't miss the Corvus CheckMaster
introduced by Mostek already in 1975. This rare product retains the balance of
your memory even when shut off but uses power-hungry electronics.
Account Manager Calculator Chips
We have no doubts that Mostek was in 1975 with the introduction of the CheckMaster ahead of time, but we credit National Semiconductor for delivering the first "useful" Account Manager Calculator three years later with the NS103 Data Checker. While the NS103 itself was replaced within just two years, lives its legend on and we even bought in 2020 with the Datexx DB-403 and DB-413 two more recent Checkbook Calculators on Amazon to figure out the improvements and changes in technology and usability during 45 years. Please find with the table below an overview of the single-chip calculator circuits discovered while dismantling all of the Account Manager Calculators featured in the Datamath Calculator Museum frm the humble Corvus CheckMaster to the astonishing Canon Checkbook Recorder storing up to 90 financial transactions including item, date, and amount in three different memory banks:
Part |
Intro. |
Power Supply |
Memories |
Additional Features |
Calculators |
Mostek MK6225N |
1975 | 6*AAA cells | 1 | Fixed two-place decimal | Corvus CheckMaster |
Mitsubishi M58490P |
1978 | 2*LR44 | 3 | Fixed two-place / Floating point decimal, Percent, Constant | National Semiconductor NS103, Unisonic LC 262 |
NEC uPD18xxG |
1979 | 2*LR43 | 2+1 | Floating point decimal, Percent, Constant, [ON/OFF] keys, Conversion Memory | National Semiconductor NS107 |
NEC uPD1831G |
1980 | 2*LR54 | 1 | Fixed 0...4-place / Floating point decimal, Percent, Constant, [ON/OFF] keys | NSC Novus
Electronics NS101A, Royal
LCB 835 (Canon F-32, TI-1744) |
NEC uPD1832G |
1980 | 2*LR54 2*LR43 |
1 | Floating point decimal, Percent, Constant, [ON/OFF] keys | Alco
LC-127A, APF
M3552CK, NSC Novus Electronics NS100A, Royal
LCB 830, Unisonic
LC 224CKE (Toshiba LC-827) |
NEC uPD1833G |
1980 | 2*LR44 2*LR43 2*LR54 |
3 | Fixed two-place / Floating point decimal, Percent, Constant, [ON/OFF] keys |
National Semiconductor NS103A, NSC Novus
Electronics NS103A, Aurora CB-900, Canon Checkbook, IMA 130CBW, Radio Shack EC-306, Royal LCB 841, TI-2200, Tandy EC-306, Unisonic LC 262CK, LC 263CK |
NEC uPD1834G |
198x | 2*LR54 | 1+1 | Floating point decimal, Percent, Constant, [ON/OFF] keys, Metric Conversion, Currency Conversion | Aurora AC-22 PASSPORT |
Sharp LI3329MT |
1981 | 2*LR54 | 1 | Percent, Constant, Square Root, [ON/OFF] keys |
Enterprex MC-2717, Unisonic LC 224CK |
Hitachi HD43570 |
1983 | CR2025 | 2+1 | Percent, Constant, [ON/OFF] keys, Full Memory | Casio CB-80 |
NEC uPD1826G-009 |
1983 | CR2025 | 5+1 | Percent, Constant, [ON/OFF] keys, Full Memory | Casio CB-100 |
Toshiba T7752S |
1985 | LR55 LR43 |
3 | Fixed two-place / Floating point decimal, Percent, Constant, [ON/OFF] keys, Password | Canon Checkbook II, Radio Shack EC-308, EC-430, TI-2200 II, TI-2200+ |
Sharp LI3330MT |
1987 | 2*LR54 | 1 | Percent, Constant, [ON/OFF] keys, Mark-Up, Tax | Royal
CBC 70, Unisonic LC 226CK |
Toshiba T9840 |
1988 | CR2025 | 3+90 | Fixed two-place / Floating point decimal, Constant, [ON/OFF] keys, Password, 90 transactions memory, 12 different categories, Clock and Calendar, Search function | Canon Checkbook Recorder |
Sharp LI3154 |
1992 | LR54 | 1 | Percent, Constant, Square Root, [ON/OFF] keys, Tax | Radio Shack
EC-455 (TI-1795+) |
Unknown Unknown |
2000 | CR2025 | 3 | Fixed two-place / Floating point decimal, Percent, Constant, [ON/OFF] keys, Password | Bedol Checkmaster Standard |
Unknown Unknown |
2000 | 2*LR43 | 3+60 | Percent, Constant, [ON/OFF] keys, Full Memory, 3*20 transaction memory, Clock and Calendar, Tax Calculation | Datexx DB-413, Radio Shack 65-504 |
Unknown T66L16 |
2002 | 2*LR43 | 3+60 | Percent, Constant, [ON/OFF] keys, Full Memory, 3*20 transaction memory, Clock and Calendar, Tax Calculation | Datexx
DB-413, Radio Shack 65-504A |
Unknown Unknown |
2003 | LR54 | 3 | Fixed two-place / Floating point decimal, Percent, Constant, [ON/OFF] keys, [Backspace] key | Datexx DB-403 |
ELAN ePS6500 |
2008 | LR54 | 1+100 | Floating point decimal, Constant, Auto Power Off, [Key Lock] key | Datexx DC-80 |
NXP (Hitachi) LH75411 |
2009 | PD2440 (3.7V) | 1000's | It is a computer, not a calculator. |
AccuBalance Corp. AccuBalance |
Please find the schematics of the Radio Shack EC-306 sporting a NEC uPD1833G single-chip calculator circuit here or click on the thumbnail picture on the right.
If you have additions to the above article please email: joerg@datamath.org.
© Joerg Woerner, December 1, 2019. No reprints without written permission.
