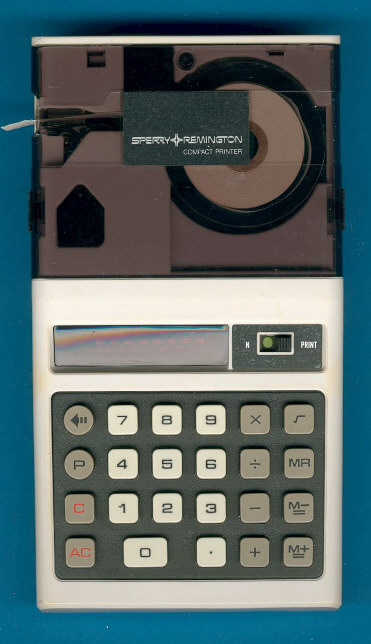

Sperry Remington COMPACT PRINTER

Date of introduction:  November, 1974 Display technology:  LED
New price:  $129,95 Display size:  8
Size:  7.7" x 4.3" x 1.8" Printer technology:  Impact
Weight:  1 pound 9 ounces Serial No:  003606
Batteries:  7*NiCd AA Date of manufacture:  year 1974
AC-Adapter:   Origin of manufacture:  Japan
Precision:  8  Integrated circuits:  Hitachi HD3599, Toshiba T1315B, T3184
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

Nothing else than a modified Casio mini-printer.

The Casio mini-printer was borrowed from a good friend and it is wise to keep the fingers away from his calculators. This Sperry Remington is my own, please explore the inside of this unique printing calculator.

The printing mechanism is different to the Canon Pocketronic. Instead of the Texas Instruments thermo printhead this one is a serial impact printer using normal paper. Sperry_Printer.jpg (43990 Byte)
The calculator electronics is sandwiched below the keyboard. The hardware uses a Hitachi HD3599 calculator chip and a Toshiba driver T1315 for the printing mechanism. Sperry_PCB.jpg (69598 Byte)


If you have additions to the above article please email: joerg@datamath.org.

Joerg Woerner, January 11, 2002. No reprints without written permission.
