Fairchild Semiconductor developed early in the 1970s a family of micro-programmed MOS/LSI (Metaloxide Semiconductor/Large Scale Integration) processor blocks called PPS 25 (Programmed Processor System - 25 Digits) to bridge the gap between simple electronic calculators and microcomputers. A minimal PPS 25 design uses six Micromosaic chips interconnected by 4-bit data buses and various control signals, corresponding directly to the block diagram of a computer based on the Harvard architecture.
At the core of the system is the CPU, composed of the 3805 Arithmetic/Logic Unit and the 3806 Control Unit. The 3808 and 3809 Data Memories each provide three dynamic 25-digit shift registers, while the 3810 Program Memory provides 256 Words * 12 Bits of storage. The 3803 and 3807 Input Device chips support up to 32 keys and 16 switches each, and the 3811 Output Device drives displays of up to 16 Digits.
The 3805 Arithmetic Chip contains the Adder/Subtractor and a 25-digit memory register. The 3805 chip, along with auxiliary 3808 and 3809 Memory Registers, receive micro-instructions from the 3810 ROM (Read-Only Memory) chips. The micro-instructions contain a data source address, a data result destination address, and an operation code. The instructions allow additions, subtractions, or transfers to take place between registers. Incrementing, decrementing, complementing, and clearing of any of the seven registers and other operations can also be performed. Data can be entered either externally or created internally by the use of a "load immediate" instruction.
The 3805 Arithmetic Chip is combining the following features in one 18-pin package:
|
4-bit Input Data Bus X0-X3 4-bit Output Data Bus Y0-Y3 Instruction Decoder 4-Bit BCD Adder 25-digit BCD Register A Register Selection Logic Interface to 3806 Function and Timing Unit |
QUICK-LINK to PPS 25 Building Blocks.
| Type | Year | Function | Products | Comments |
| 3805 | 1973 | Arithmetic Chip |
Centurion Industries Multiputer
CPD-15, CPD-35 Cybernetic Systems Mathiputer CPD-15, CPD-35 |
18 pin Ceramic DIP |
| Description | Comments | |
| Architecture | Harvard, Processor Blocks | First Generation |
| Category | Register Processor | 25-digit BCD-serial |
| ROM Size | not applicable | |
| RAM Size | 150 Bits | 1 Register * 100 Bits (25 Digits) 2 Registers * 25 Bits |
| Item | Min | Typ | Max | Unit | Comments |
| VSS | 4.75 | 5.0 | 5.25 | V | TTL, DTL compatible |
| VDD | 0 | V | |||
| VGG | -9.5 | -10.0 | -10.5 | V | |
| VOH1 | 2.4 | VSS | V | 1 TTL Load | |
| VOL1 | 0 | 0.4 | V | 1 TTL Load | |
| VOH2 | VSS-1.0 | VSS | V | MOS Load | |
| VOL2 | 0 | 0.5 | V | MOS Load | |
| VIH1 | VSS-1.0 | VSS | V | DTL/TTL compatible | |
| VIL1 | VDD | VSS-4.2 | V | DTL/TTL compatible | |
| VIH2 | VSS-1.0 | VSS | V | Clock Input | |
| VIL2 | VGG | VSS-14.0 | V | Clock Input | |
| Ext. CK | 400 | kHz | Two-phase clock | ||
| CP1 Width | us | Active low | |||
| CP2 Width | us | Active low | |||
| CP1 to CP2 Delay | us | Between pulses |
The 3805 Arithmetic Chip uses a standard 0.3 wide 18-pin CDIP (Ceramic Dual In-line Package with a 0.1 / 2.54 mm lead pitch).
The die of the 3805 Arithmetic Chip is attached to the gold-plated cavity of the 16-pin CDIP with its Pin 3 (VSS) bonded to the substrate and silicon die.
The PPS 25 Building Blocks were manufactured in a 11.5 um metal gate PMOS process (metal width = 0.45 mil / 11.5 um, metal spacing = 0.44 mil / 11.5 um, diffusion width = 0.30 mil / 8.0 um, diffusion spacing = 0.30 mil / 8.0 um). The die size of the 3805 Arithmetic Chip is approximately 150 mils * 140 mils / 3.8 mm * 3.5 mm.

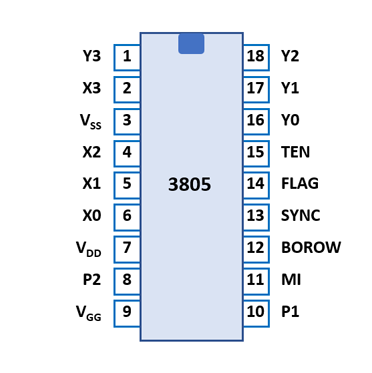

| PPS 25 - 3805 Arithmetic Chip | |||||
| Pin | IO | Function | Pin | IO | Function |
| 1 | O | Data Bus Y3 | 18 | O | Data Bus Y2 |
| 2 | I | Data Bus X3 | 17 | O | Data Bus Y1 |
| 3 | V | Positive Voltage VSS | 16 | O | Data Bus Y0 |
| 4 | I | Data Bus X2 | 15 | I | Time Enable ROM |
| 5 | I | Data Bus X1 | 14 | O | Adder FLAG |
| 6 | I | Data Bus X0 | 13 | I | SYNC |
| 7 | V | Common Voltage VDD | 12 | O | Adder BOROW |
| 8 | I | Clock P2 | 11 | I | Micro Instruction Input |
| 9 | V | Negative Voltage VGG | 10 | I | Clock P1 |
