Fairchild Semiconductor developed early in the 1970s a family of micro-programmed MOS/LSI (Metaloxide Semiconductor/Large Scale Integration) processor blocks called PPS 25 (Programmed Processor System - 25 Digits) to bridge the gap between simple electronic calculators and microcomputers. A minimal PPS 25 design uses six Micromosaic chips interconnected by 4-bit data buses and various control signals, corresponding directly to the block diagram of a computer based on the Harvard architecture.
At the core of the system is the CPU, composed of the 3805 Arithmetic/Logic Unit and the 3806 Control Unit. The 3808 and 3809 Data Memories each provide three dynamic 25-digit shift registers, while the 3810 Program Memory provides 256 Words * 12 Bits of storage. The 3803 and 3807 Input Device chips support up to 32 keys and 16 switches each, and the 3811 Output Device drives displays of up to 16 Digits.
The 3810 ROM (Read-Only Memory) contains a mask-programmable 256 * 12 Bits Micro Instruction Memory, up to 26 3810 ROMs can be used in a PPS 25 System for a combined 3,328 Micro Instruction Words. All 3810 ROMs in a PPS 25 System receive an 8-bit address simultaneously and the selected 3810 ROM shifts out the selected 12-bit instruction. Data stored in the ROMs can be transferred to the accumulator of the 3805 Arithmetic Chip to generate constants or addresses.
The 3810 ROM is combining the following features in one 16-pin package:
|
Serial Micro Instruction
Input MI Serial Micro Instruction Output MIO Address Decoder ROM Select Logic 256 * 12 Bits mask-programmable Micro Instruction Memory |
QUICK-LINK to PPS 25 Building Blocks.
| Type | Year | Function | Products | Comments |
| 3810 (SL30745) | 1973 | ROM |
Centurion Industries Multiputer
CPD-15, CPD-35 Cybernetic Systems Mathiputer CPD-15, CPD-35 |
16 pin Ceramic DIP |
| Item | Min | Typ | Max | Unit | Comments |
| VSS | 4.75 | 5.0 | 5.25 | V | TTL, DTL compatible |
| VDD | 0 | V | |||
| VGG | -9.5 | -10.0 | -10.5 | V | |
| VOH1 | 2.4 | VSS | V | 1 TTL Load | |
| VOL1 | 0 | 0.4 | V | 1 TTL Load | |
| VOH2 | VSS-1.0 | VSS | V | MOS Load | |
| VOL2 | 0 | 0.5 | V | MOS Load | |
| VIH1 | VSS-1.0 | VSS | V | DTL/TTL compatible | |
| VIL1 | VDD | VSS-4.2 | V | DTL/TTL compatible | |
| VIH2 | VSS-1.0 | VSS | V | Clock Input | |
| VIL2 | VGG | VSS-14.0 | V | Clock Input | |
| Ext. CK | 400 | kHz | Two-phase clock | ||
| CP1 Width | us | Active low | |||
| CP2 Width | us | Active low | |||
| CP1 to CP2 Delay | us | Between pulses |
The 3810 (SL30745) ROM uses a standard 0.3 wide 16-pin CDIP (Ceramic Dual In-line Package with a 0.1 / 2.54 mm lead pitch).
The die of the 3810 (SL30745) ROM is attached to the gold-plated cavity of the 16-pin CDIP with its Pin 3 (VSS) bonded to the substrate and silicon die. Pins 1, 2, 6, 8, 9, 10, 11, and 16 are not bonded to the silicon die.
The PPS 25 Building Blocks were manufactured in a 11.5 um metal gate PMOS process (metal width = 0.45 mil / 11.5 um, metal spacing = 0.44 mil / 11.5 um, diffusion width = 0.30 mil / 8.0 um, diffusion spacing = 0.30 mil / 8.0 um). The die size of the 3810 (SL30745) ROM is approximately 115 mils * 135 mils / 2.9 mm * 3.5 mm.

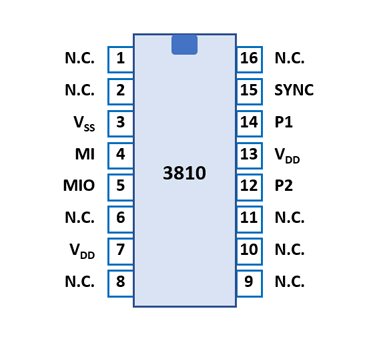

| PPS 25 - 3810 (SL30745) ROM | |||||
| Pin | IO | Function | Pin | IO | Function |
| 1 | N.C. | 16 | N.C. | ||
| 2 | N.C. | 15 | I | SYNC | |
| 3 | V | Positive Voltage VSS | 14 | I | Clock P1 |
| 4 | I | Micro Instruction Input MI |
13 | V | Negative Voltage VGG |
| 5 | O | Micro Instruction Output MIO |
12 | I | Clock P2 |
| 6 | N.C. | 11 | N.C. | ||
| 7 | V | Common Voltage VDD | 10 | N.C. | |
| 8 | N.C. | 9 | N.C. | ||
If you have additions to the above datasheet please email: joerg@datamath.org.
