Texas Instruments TI-5006 II

Date of introduction:  1994 Display technology:  LCD
New price:   Display size:  10
Size:  7.0" x 3.5" x 1.5" Printer technology:  Impact
Weight:  7.2 ounces Serial No:
Batteries:  4*AA (250mA) Date of manufacture:  mth 11 year 1994
AC-Adapter:  AC9175 Origin of manufacture:  Thailand
Precision:  10 Integrated circuits:  Toshiba T7916S
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

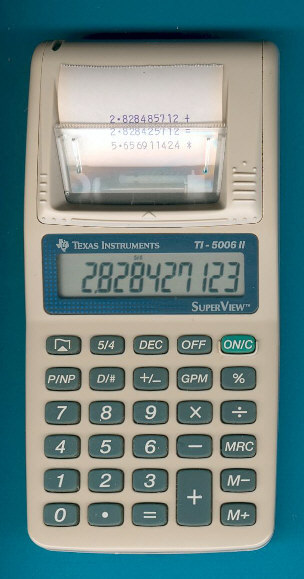

The TI-5006 II is a typical low-cost printing calculator using normal paper.

A similar calculator without the [+/-] key was introduced 2 years earlier with the TI-5006.

TI-5006-II_PCB.jpg (66890 Byte)The internal construction of the TI-5006 II reveals no surprises, a clean and simple construction based on a single-chip microcomputer.
