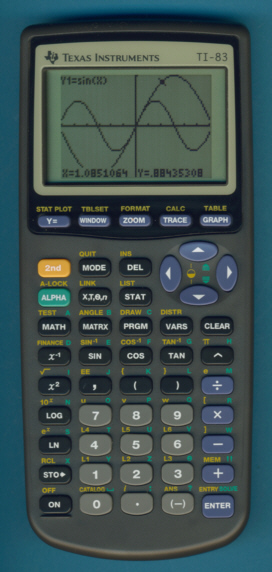

Texas Instruments TI-83

Date of introduction:  March 1999 Display technology:  LCD dot matrix
New price:  $125 Display size:  8 * 16 characters
Size:  7.2" x 3.2" x 0.80"
 182 x 81 x 20 mm3

Weight:  6.4 ounces, 182 grams Serial No:
Batteries:  4*AAA + CR1620 (35mA) Date of manufacture:  Engineering Sample
AC-Adapter:   Origin of manufacture:  Taiwan
Precision:  14 Integrated circuits:  CPU: Toshiba T6C79
 ROM: TI883-03©1998
 RAM: Winbond W24258S
 Display: T6A04
Memories:
Program steps:  27k Bytes Courtesy of:  Joerg Woerner

The original TI-83, introduced in 1996, received after three years a slightly different look in response to the very positive reaction of the then new TI-73

From a technical point of view the TI-83 very similar to the revised TI-82 introduced in 1999, too. The main differences are the integration of the Z80 core and the supporting ASIC with into the Toshiba T6C79 Application Specific CPU. This high integrated chip found its way into the TI-82 Parcus and TI-83 Parcus, both introduced in 2001.

TI-83_ES_PCB.jpg (375412 Byte)TI-83_ES_Back.jpg (240637 Byte)Disassembling this TI-83 manufactured in May 1998 reveals no big surprises. It makes use of just 4 main components on the printed circuit boards (PCB’s):

Toshiba T6C79 - Application specific CPU
   combines a Z80 core with an ASIC
Macronix TI883-03©1998 - ROM for internal program storage
Winbond W24258S - 32k Bytes S-RAM for user program and data
Toshiba T6A04 - display driver


TI-83_ES_MEMORY.jpg (198404 Byte)CPU (Central processing Unit): The Toshiba T6C79 is a so-called Application Specific CPU and combines a Z80 core with an ASIC (Application Specific Integrated Circuit). You’ll find different approached within the graphing calculator line of Texas Instruments, sometimes the use of an individual CPU (e.g. Z80 and M68000) with a supporting ASIC or – like with this TI-83 the integration of the CPU into the ASIC.

ROM (Read Only Memory): The ROM contains the operating system of the calculator. The first products on the market used mask-programmable ROM, the program was strored already during the production of the Integrated Circuit. Later calculators changed to Flash ROM, a technology allowing the programming of the software during the final production stage of the calculator. With the TI-83 Plus and all later graphing calculators from Texas Instruments even the user was able to reprogram the operating system.

The TI883-03©1998 ROM of this TI-83 was manufactured by Macronix International, the largest supplier of ROM products established in 1989 in Taiwan.

RAM (Random Access Memory): The RAM is used as data memory and is used to store both variables, user programs and intermediate results. This TI-83 makes use of W24258S manufactured by Winbond, Taiwan. The capacity of the memory is 32k Bytes.

TI-83_ES_LCD.jpg (76974 Byte)DISPLAY: The Toshiba T6A04 is a driver for small-to-medium-sized dot matrix graphic LCD. It is compatible with Z80 based CPUs and drives displays with up to 120 columns and 64 rows. The display of the TI-83 is just 96 * 64, therefore only one display driver is necessary. The bare chip is mounted on a flexible piece of circuit board attached between the display and the main PCB.

A special "teacher version" called TI-83 VSC combines the standard TI-83 features with a port to connect to a ViewScreen panel via a cable. Placing the panel on the overhead projector enlarges the image of the handheld screen so that each student can follow along.

A serial port of the calculators allows the connection to the Calculator-Based Laboratory system CBL, its successor CBL 2, the Calculator-Based Ranger CBR and its successor CBR 2.

Don't miss the colorful slide cases developed for the TI-83 Plus, they fit on the TI-83, too.

The design of the TI-83 changed during production slightly, don't miss the original TI-83.

ROM-Versions:

1.08000

You can check the ROM version of your TI-83 using the following key sequence and reading the number on your screen:

[MODE] [ALPHA] [S]

Information provided by ticalc.org and Xavier Andréani.

Exam acceptance:

The TI-83 is permitted (as of September 27, 2007) for use on SAT, ACT, PSAT and AP exams.
