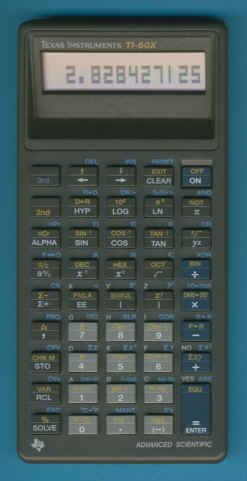

Texas Instruments TI-60X

Date of introduction: | 1991 | Display technology: | LCD dot matrix |

New price: | Display size: | 12 | |

Size: | 5.9" x 2.9" x 0.6" 150 x 74 x 15 mm³ |
||

Weight: | 3.3 ounces, 93 grams | Serial No: | |

Batteries: | CR2032 | Date of manufacture: | wk 49 year 1991 |

AC-Adapter: | Origin of manufacture: | Italy | |

Precision: | 13 | Integrated circuits: | T9838 |

Memories: | 1-12 | ||

Program steps: | 96-8 | Courtesy of: | Joerg Woerner |

Download manual: | (US: 12.6 MByte) |

The
TI-60X Advanced Scientific calculator carries the name of the slanted TI-60 but
uses the housing and keyboard technology of a TI-68. The
overall appearance and the simple formula programming gives this calculator the
nickname "TI-68 light".

The
most obvious difference is the bold-looking display, a deeper exploration
reveals a character layout of only 5*4 dots instead the common 7*5 dot matrix.

The
internal construction of the TI-60X is identical with the TI-68. A powerful
Toshiba 4-bit single-chip microcontroller T9838 (TI-68: Toshiba T9948A)
assembled on a rigid two-sided printed circuit board and the dot-matrix
LC-display attached with a flexible cable.

The TI-60X is one of the early calculators using the EOS or
Equation Operating System compared to the original AOS system developed with the
SR-52. The TI-60X lets you enter an expression
into the entry line the same way as you would write it. You can move through
the entry line to review or edit any part of the expression before evaluating
it. Most of the information about entering and editing applies both to equations
and formulas. The maximum length of an equation can range from 71 to 236
characters, depending of the amount of data (such as variables and formulas) you
have stored. Each digit occupies one character and each operation occupies two
characters.

*AOS™ and E**OS™ are trademarks
of Texas Instruments.*
