Datamath Calculator Museum TMS0500 8-Channel Serial Data Recorder Pro
| Date of introduction: | January 15, 2024 | Display technology: | |
| New price: | $1,049.95 (2022 = $169.95 in 1974) | Display size: | |
| Size: | 3.2" x 4.8" x 1.1" 81 x 122 x 28 mm3 |
||
| Weight: | 2.9 ounces, 83 grams | Serial No: | 0001 |
| Batteries: | Date of manufacture: | mth 01 year 2024 | |
| AC-Adapter: | DC 5V (USB) | Origin of manufacture: | USA |
| Precision: | Integrated circuits: | Arduino DUE, 8*23LC1024 | |
| Memories: | 96k Bytes SRAM, 512k Bytes Flash ROM | Displays: | |
| Program steps: | Courtesy of: | Joerg Woerner |
The

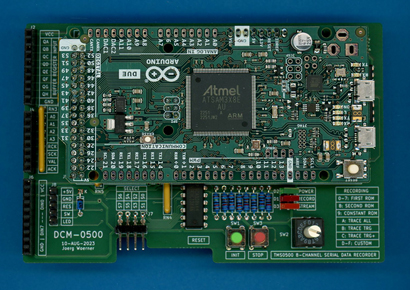

TMS0500 8-Channel Serial Data Recorder Pro is part of the modular DCM-0500
(Platform) to allow
Reverse-engineering of Calculators based on the TMS0500 Building Blocks
for Scientific and Programmable Calculators and Recording of
ROM Images of the Integrated Circuits (ICs) used with these calculators and connects to the
East-Port of the
TMS0500 ROM Platform.
Compared to the standard TMS0500 8-Channel Serial Data Recorder, the Pro Edition adds two features for more demanding software applications running on its Arduino DUE Platform:
|
• Decoder for up to eight
TMS0500 8-Channel Serial Data Recorder 128-Bit Modules • 8M Bit Serial Memory Expansion for the Arduino DUE |
