Texas Instruments introduced in 1973 with the TI-4000 Desktop calculator a very compact, yet capable product with a 12-digit display as an upgrade option to the TI-3000 and TI-3500 calculators with 8-digit resp. 10-digit displays. The TI-4000 was one of the first applications of TIs TMS0200 Building Blocks for Desktop Calculators, a groundbreaking architecture centered around a Data Chip and various Support ICs:
TMS0200 Data Chip Register Processor with four 16-digit Registers and seven Keyboard Scan inputs TMS0300 ROM Chip 512*13 Bits Instruction Memory with serial interface to Data Chip and 13-digit display and keyboard scanning, up to 4 ROM Chips TMC0400 ROM/Register Chip - 512*13 Bits Instruction Memory with parallel interface to ROM Chip and two 16-digit Registers TMS0220 Printer Chip Interface to two-color Drum Printer Mechanism TMC0250 Printer/Display Chip Interface to Thermal Printer Mechanism and Dot-Matrix Display |
The TMS0200 Data Chip requires in a minimum configuration as used in the TI-4000 a TMS0300 ROM Chip for Program Memory and to scan up to 13 digits of the display.
The TMS0300 combines two Building Blocks of a 12-digit Desktop Calculator in one 40-pin package:
Instruction Memory for the Data Chip with a capacity of 512*13 Bits Scanning of the Display and Keyboard |
The combination of both its programmability and scalability of the TMS0200 Building Blocks for Desktop Calculators allowed the introduction of some interesting products like the Hexadecimal Calculator/Converter SR-22 bypassing the BCD correction of the ALU (Arithmetic Logic Unit) or the massive Printing Desktop calculator TI-620
The 13-bit wide Instructions Words of the TMS0200 Data Chip are divided into two chunks of 6 bits and 7 bits and transmitted through two serial output pins to the corresponding pins of the (IRG A B0 B5) and IRG B B6 B12) to allow for a faster transfer than using a single serial data port while still saving many connection pins compared to a parallel transfer of the data.
A parallel interface with 13 inputs allows for the connection of a TMC0400 ROM/Register Chip for an expansion of the ROM capacity by an additional 512*13 Bits.
Display and Keyboard scanning for up to 15 digits is shared between the TMS0300 ROM Chip (11 digits D2 D12) and TMS0200 Data Chip (4 digits D1, D13 D15), synchronization between the devices is accomplished with four 4 S-Times Outputs SA, SB, SC, and SD generated by the TMS0200 Data Chip to signal the 16 States of its Instruction Cycle. The TMS0200 sports seven inputs for the keyboard matrix allowing up to a maximum of up to 105 keys and/or switches.
While none of the known products based on the TMS0200 Building Blocks makes fully use of their possibilities like addressing up to 4 ROM chips and up to 16 Register Chips, did the design lay out the architecture of the TMS0500 Building Blocks for Scientific Calculators introduced with the "Slide Rule" calculator SR-50 in January 1974 and leading all the way to the legendary TI Programmable 59 and the amazing SR-60A Prompting Desktop calculator.
With each product based on the TMS0200 Building Blocks for Desktop Calculators using at least one TMS0300 ROM Chip and Texas Instruments numbering them in a sequential way, we can easily track the individual designs.
QUICK-LINK to TMS0200 Family.
Only certain Desktop and Scientific Calculators introduced between 1973 and 1974 by Texas Instruments, Canon, Olympia and Teal adopted the TMS0200 Architecture, while the TMC0250 Printer/Display Chip found its way into the wildly successful PC-100 Printer Cradle for the SR-51, SR-52, SR-56, TI-58, TI-58C, and TI-59 calculators and the SR-60 Prompting Calculator.
Type | Calculators | Function |
TMS0301 | TI-4000, TI-410 | [+=] [-=] keys, Memory, K Panaplex Display |
TMS0302 | Canon L121F | [+=] [-=] keys, Memory, K Panaplex Display |
TMS0304 | SR-20 | [+] [-] [=] keys, x2,1/x, sqr(x), x!, PI, ex Panaplex Display |
TMS0305 | TI-500 | [+=] [-=] keys, Memory, K Printer only |
TMS0306 | TI-620 | [+=] [-=] keys, 2 Memories, K Printer only. Uses TMC0406 |
TMS0311 | TEAL PM1200 | [+=] [-=] keys, Memory, K Panaplex Display |
TMS0318 | Olympia CD401A | [+=] [-=] keys, Memory, K, % VF-Display |
TMS0320 | TEAL 6121D, Elite 1202M | [+=] [-=] keys, Memory, EX, K, %, sqr(x) VF-Display |
TMC0321 | Canon L1210 | [+=] [-=] keys, Memory, K, %, sqr(x) Panaplex Display |
TMC0322 | TI-450 | [+=] [-=] keys, Memory, K Panaplex Display |
TMC0323 | SR-22 | Hexadecimal Calculator/Converter Panaplex Display. Uses TMC0404 |
Parameter | Min | Typ | Max | Unit | Comments |
VSS | +9.2 | +10.0 | +10.6 | V | |
VDD | 0 | V | |||
VGG | -7.2 | -7.0 | -6.4 | V | |
PHI1, PHI2 | 50 | 250 | 300 | kHz | Opposite phases |
The TMS0300 was manufactured in a metal gate PMOS process.

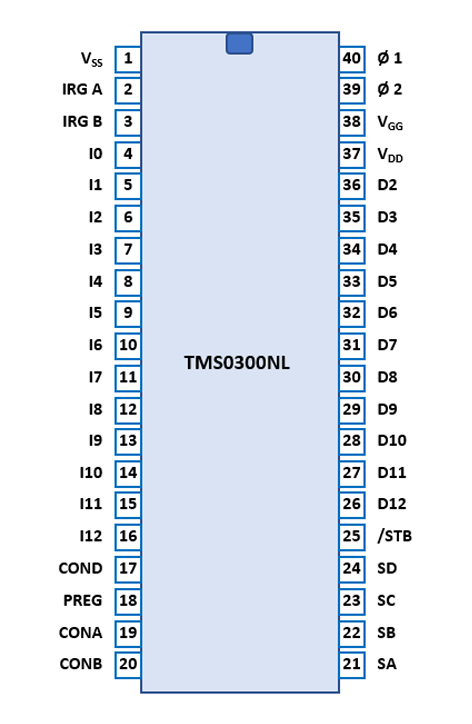

The TMS0300 uses a 0.6 wide 40-pin DIP (Dual In-line Package with a 0.1 / 2.54 mm lead pitch).
Pin | IO | Function | Pin | IO | Function |
1 | V | VSS (+10 V) | 40 | I | Clock Input 1 |
2 | O | Instruction word B0-B5 | 39 | I | Clock Input 2 |
3 | O | Instruction word B6-B12 | 38 | V | VGG (-7 V) |
4 | I | Expansion ROM Instr. B0 | 37 | V | VDD (0 V) |
5 | I | Expansion ROM Instr. B1 | 36 | O | Digit driver 2 |
6 | I | Expansion ROM Instr. B2 | 35 | Digit driver 3 | |
7 | I | Expansion ROM Instr. B3 | 34 | O | Digit driver 4 |
8 | I | Expansion ROM Instr. B4 | 33 | O | Digit driver 5 |
9 | I | Expansion ROM Instr. B5 | 32 | O | Digit driver 6 |
10 | I | Expansion ROM Instr. B6 | 31 | O | Digit driver 7 |
11 | I | Expansion ROM Instr. B7 | 30 | O | Digit driver 8 |
12 | I | Expansion ROM Instr. B8 | 29 | O | Digit driver 9 |
13 | I | Expansion ROM Instr. B9 | 28 | O | Digit driver 10 |
14 | I | Expansion ROM Instr. B10 | 27 | O | Digit driver 11 |
15 | I | Expansion ROM Instr. B11 | 26 | O | Digit driver 12 |
16 | I | Expansion ROM Instr. B12 | 25 | I | Strobe |
17 | I | Condition Flag | 24 | I | S-Times D |
18 | I | P Register | 23 | I | S-Times C |
19 | I | Condition Flag A | 22 | I | S-Times B |
20 | I | Condition Flag B | 21 | I | S-Times A |
If you have additions to the above datasheet please email: joerg@datamath.org.
