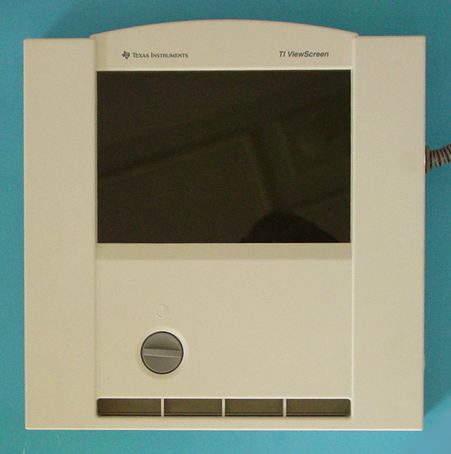

Texas Instruments TI ViewScreen 82 (1995)
|Date of introduction:||March 1995||Display technology:||LCD dot matrix|
|New price:||$250.00 (SRP 2008)||Display size:||8 * 16 characters|
|Size:|| 10.4" x 9.7" x
263 x 247 x 38 mm3
|Weight:||29.3 ounces, 830 grams||Serial No:||0102409|
|Batteries:||(4*AAA from Calculator)||Date of manufacture:||mth 08 year 1995|
|AC-Adapter:||AC9201, AC9201E||Origin of manufacture:||United States (LTA)|
|Precision:||Integrated circuits:||Toshiba T6A04|
|Program steps:||Courtesy of:||Joerg Woerner|
TI ViewScreen panel connects with a cable to the Texas Instruments Graphing
the panel on the overhead projector enlarges the image of the handheld screen so
that each student can follow along. Don't miss the US Patent Application U.S. Pat. No. 5,168,294 with the title “Display demonstration system for providing enlarged projected image of calculator display”
filed already in September 27, 1991.
The TI ViewScreen 82 was introduced in 1993 and connects to the TI-82 VSC (ViewScreen Calculator). It was delivered either as the ViewScreen panel package with the power supply and a carrying case or as part of the ViewScreen system including the Graphing calculator.
In 2008 four different ViewScreen panels were available for TI's Graphing calculators:
|• Panel 1:
TI-73 VSC, TI-73 Explorer VSC,
TI-82 VSC, TI-83 VSC,
TI-83 Plus VSC, TI-83 Plus Silver Edition VSC, TI-84 Plus VSC,
TI-84 Plus Silver Edition VSC
• Panel 2: TI-89 VSC, TI-89 Titanium VSC, TI-92, TI-92 Plus, Voyage 200
• Panel 3: TI-85 VSC (2nd design), TI-86 VSC
• Panel 4: TI-Nspire, TI-Nspire CAS, TI-Nspire Touchpad, TI-Nspire CAS Touchpad
Based on the manufacturing year of the TI-82 View Screen Panel, you'll notice different markings on the front and compatible calculators listed on the Product Label on the backside of the device:
1993-1994: TI ViewScreen
Product Label: None
• 1994-1995: TI ViewScreen
Product Label: TI-81, TI-82
• 1995-1997: TI ViewScreen
Product Label: TI-80, TI-81, TI-82
• 1996-1999: TI ViewScreen 80, 81, 82, 83
Product Label: TI-80, TI-81, TI-82, TI-83
• 1999-2004: TI ViewScreen 73, 80, 81, 82, 83Plus
Product Label: TI-73, TI-80, TI-81, TI-82, TI-83, TI-83 Plus
• 2004-2008: TI ViewScreen 73, 80, 81, 82, 83, 83Plus, 84Plus
Product Label: TI-73, TI-80, TI-81, TI-82, TI-83, TI-83 Plus, TI-84 Plus
Dismantling this TI ViewScreen 82 with
Date code LTA95 manufactured in August 1995 by
Texas Instruments in their Lubbock, TX, facility
reveals no surprises and looks identical to the original design introduced
in October 1993. A large, transmissive LCD panel is connected to a Toshiba
T6A04 display driver known already
from the redesigned TI-81 introduced in October 1993,
too. The reminder
of the electronics resembles the receivers of the signals from the connected ViewScreen Calculator, contrast adjustment of the screen and power supply for the
The Toshiba T6A04 combines 120 column drivers and 64 row drivers and the display RAM with a capacity of 120 x 64 bits in a tiny tape carrier package (TCP) and connects directly to an 8-bit Interface.
The Presentation Link Adapter connects the student versions of the TI-84 Plus family to the ViewScreen panel using the calculator's USB port.
With the phase out of the overhead projectors from the daily life, Texas Instruments developed with the TI-Presenter a perfect replacement for the ViewScreen panels based on modern video technology.
