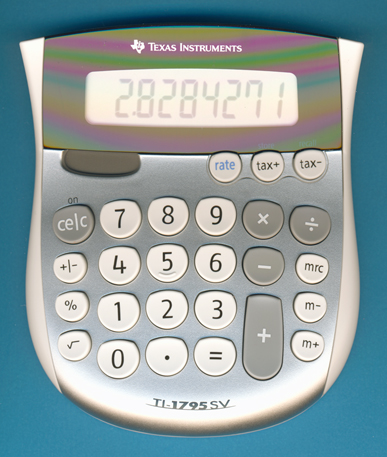

Texas Instruments TI-1795SV (2016 Kinpo Electronics, Philippines)

Date of introduction:  2016 Display technology:  LCD
New price:  $15.00 (SRP 2020) Display size:  8
Size:  5.4" x 4.6" x 1.0"
 137 x 118 x 25 mm3

Weight:  4.2 ounces, 118 grams Serial No:
Batteries:  LR54 Date of manufacture:  mth 02 year 2017 (K)
AC-Adapter:   Origin of manufacture:  Philippines (L)
Precision:  8 Integrated circuits:
Memories:  1
Program steps:   Courtesy of:  Joerg Woerner

This TI-1795SV introduced in Summer 2003 together with the TI-503SV and TI-1706SV a rather bold design style for electronic calculators. Compared with the first generation of the TI-1795SV its successor added tax functionality and uses a stylish coloring scheme with a mixture of white, silver and black elements, continued in 2004 with the TI-36X SOLAR, TI-84 PLUS Silver Edition, TI-89 Titanium and to some extend the BA II PLUS Professional.

The TI-1795SV traces back to the legendary TI-1795 introduced in 1984 also known as OEM Design SD9 and probably the best selling Small Desktop calculator of all time. The blister boxes of the TI-1795SV stated in 2003, depending of the region of sales, accordingly "Millions sold" or "Still the classic mini-desktop calculator for home, office, or retail with big keys and extra-large display". As of April 2020 the TI-1795SV is still without major changes on the market and we know 5 different versions:

TI-1795SV K-0403D (2003) internal battery, Kinpo Electronics China, April 2003, Rev. D
TI-1795SV N-1205D (2003) internal battery, Nam Tai Electronics China, December 2005, Rev. D
TI-1795SV K-1007F (2006) with battery door, Kinpo Electronics China, October 2007, Rev. F
TI-1795SV N-0208F (2006) with battery door, Nam Tai Electronics China, February 2008, Rev. F
TI-1795SV L-0217K (2016) with battery door, Kinpo Electronics Philippines, February 2017, Rev. K

This 2nd Generation of the TI-1795SV feels much more substantial than its predecessor, it actually gained about 30% weight by using much thicker plastic material for the two parts of the housing and added a robust protection window to the LC-Display. Dismantling this TI-1795SV manufactured in February 2017 by Kinpo Electronics in the Philippines reveals a pretty clean design centered around an unknown single-chip calculator circuit mounted in Chip-on-Board (COB) technology directly onto a double-sided printed circuit board (PCB) and powered by 4 small solar cells and a LR54 (LR1130) backup battery.

Inspecting the PCB of this TI-1795SV calculator brought our attention to a small mark reading 795E-12. We spotted a very similar PCB-Mark already with the TI-1796SV and started compiling a list of the PCB-Marks on calculators manufactured by OEMs for Texas Instruments.
