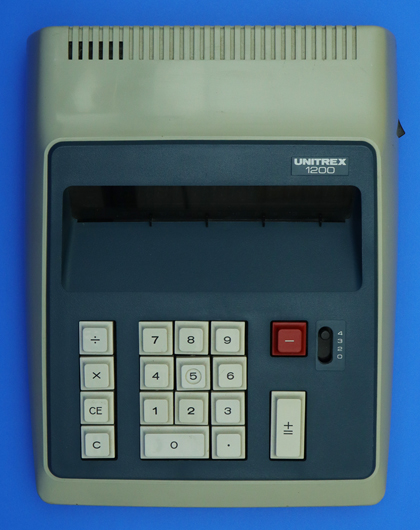

Unitrex 1200 (Type 27)

Date of introduction:	December 1971	Display technology:	Panaplex-style
New price:		Display size:	12
Size:	9.6" x 7.6" x 2.4"  245 x 194 x 62 mm3
Weight:	47.7 ounces, 1,352 grams	Serial No:	D27A852834
Batteries:	n.a.	Date of manufacture:	mth 10 year 1972
AC-Adapter:	120 V	Origin of manufacture:	Japan
Precision:	12	Integrated circuits:	Cal-Tex CT5001
Logic:	Adding Machine	Displays:	USHIO U-BR-12400ES
Memories:
Program steps:		Courtesy of:	Joerg Woerner
		Download manual:	(US: 1.5M Bytes)

Eiko Business Machine Co., Ltd. of Japan started manufacturing electronic calculators in November 1968 with the Unitrex IC8 based on Mitsubishi's SSI (Small Scale Integration DTL (Diode-Transistor Logic) chips and a 96-bit ferrite core memory. Eiko acquired in 1972 a stake in Cal-Tex Semiconductor, Inc., an American startup company founded as designer and manufacturer of Custom LSI (Large Scale Integration) PMOS (p-channel Metal–oxide Semiconductor) Integrated Circuits (ICs) with a strong focus on electronic calculators. Cal-Tex first product was the CT5001, a drop-in replacement of Mostek's MK6010 - exclusively available for Busicom and recognized as the World’s first single-chip calculator circuit.

As soon as the CT5001 was available, Eiko introduced in March 1972 with the Unitrex 1200 a very competitive 12-digit desktop calculator sold in various variants and iterations not only under Eiko's Unitrex, Frontier and Signet brands but through many OEMs like ABM, Blauring, Elite, Executron and Privileg. The Unitrex 1200 was soon complemented with the Model 1200M, adding a 4-function Memory to the feature set of the Model 1200 and based on Cal-Tex' CT5005, the World's first single-chip calculator circuit with Memory function.

We are not sure what went wrong in the relationship between Eiko and Cal-Tex but Eiko founded later in 1972 with Frontier Inc. a new company in the United States to develop their own calculator chips. The gap between retiring Cal-Tex chips in Eiko's product portfolio and ramping up the production of Frontier chips was filled with Mostek's LSI Chips and we know as of today five different generations of the Unitrex 1200/1200M desktop calculators and its derivations:

We acquired this Unitrex 1200 (Type 27) calculator in 2025 on our quest to understand the similarities and differenced of the Mostek ICs, Cal-Tex ICs, and Frontier ICs used with the Unitrex 1200/1200M Series calculators.

Dismantling the featured Unitrex 1200 (Type 27) calculator manufactured in October 1972 in Japan reveals a clean design based on a large single-sided printed circuit board (PCB) for its electronics and power supply, a keyboard module and a display module.

The Main-PCB is centered around a Cal-Tex CT5001 single-chip calculator circuit and supported by four hybrid modules, four resistor network modules and some discrete components located in the front half of the PCB. The rear quarter of the PCB is occupied by the internal power supply, while the space between is used for the Panaplex-style display module.

To gain some knowledge about the differences between the Cal-Tex' CT5001 located in this Unitrex 1200 (Type 27) and Mostek MK5011 used with the Unitrex 1200 (Type 37), we decided here at the Datamath Calculator Museum to give it a "Teardown Treatment" and sharing our findings accordingly.

While researching the Unicon 1200 and its siblings, we noticed many variants with not only different housing shapes, housing colors, keyboard colors, but even changes of the keyboard electronics, display modules and hybrid modules. We included in our research a second Unitrex 1200 (Type 37) manufactured in September 1973.

Calculating Unit: CT5001 used with the Unitrex 1200 (Type 27) is the first design of Cal-Tex Semiconductor, Inc., founded in 1971 by former Texas Instruments employees in Richardson, Texas and soon relocated to Santa Clara, California. When Mostek introduced in November 1970 with the MK6010 the World’s first "single-chip calculator circuit", it was sold exclusively to Nippon Calculating Machine Corp of Japan for their Busicom Model 120-DM small desktop calculator, also known as the Busicom Junior. Cal-Tex quickly recognized the gap in the market and moved to address it by developing the CT5001 as a drop-in replacement for Mostek's MK6010. The company formally introduced the CT5001 in November 1971, with first silicon becoming available by January 1972

Display: The featured Unicom 1200 (Type 27) calculator manufactured in October 1972 makes use of a U-BR-12400ES U-PANAPLEX display module manufactured by USHIO with a discrete neon lamp for the minus sign and plugged with its pins directly to a matching connector on the Main-PCB.

Display Driver: Early single-chip calculator circuits like General Instrument's C-500, Mostek's MK6010 or Texas Instruments' TMS0100 didn't include any display drivers and left the choice of display technology and necessary interface circuitry to the designers of the electronic calculators. The PMOS (p-channel Metal–oxide Semiconductor) technology used with these chips was neither compatible with Vacuum Fluorescent Displays (VFDs) nor with Led Emitting Diode (LED) Displays:

Planar neon gas discharge displays like the USHIO U-PANAPLEX modules are operated with even higher voltages, typically around 180 Volts. To translate the "high-side" digit and segment drivers of the Cal-Tex CT5001 chip, Unitrex is using hybrid modules from Kyodo Electronic Laboratories Inc., a subsidiary of Toko Inc. These encapsulated modules are using discrete transistors and resistors mounted on either a ceramic substrate or a simple PCB to translate the output signals of the CT5001 to the required operating voltages of the display module..

The dismantled Unitrex 1200 (Type 27) calculators are using two Kyodo KH-6225 Digit Driver Modules connected with 12 high-voltage capacitors as level shifters to the twelve Digit Outputs D1 to D12 of the CT5001 chip and one Kyodo KH-6259 Segment Driver Module connected to the Segment Outputs SA to SG and SDP of the CT5001 chip.

Most input and output pins of the CT5001 single-chip calculator circuit are requiring "pull-down" resistors for their operation, the Unitrex 1200 (Type 27) calculator manufactured in October 1972 is using four Resistor Network Modules RN0901, RN1201, RN1301, and RN1601 from R.ohm. An Unitrex 1200 (Type 37) calculator from September 1973 is showing the bare PCBs of these modules.

Clock: The CT5001 single-chip calculator circuit of the Unitrex 1200 (Type 27) manufactured in October 1972 is operated with a frequency of about 25.2 kHz. The non-overlapping two-phase clock signals are generated with a Kyodo KB-5312 Clock Generator Module.

Power Supply: The Unitrex 1200 (Type 27) desktop calculator is powered by a 120 Volts main outlet and uses an internal transformer with rectifiers, transistors, zener diodes, resistors and capacitors to generate the required voltages for the CT1001 and USHIO U-BR-12400ES module:

Keyboard: The keyboard of the Unitrex 1200 (Type 27) uses 17 spring-loaded switches mounted directly on a single-sided PCB together with a 4-position sliding switch the Decimal Point selection. A total of 18 diodes are used to convert the ten number keys to the key inputs KN1 to KN4 (Numbers) of the CT5001, convert the sliding switch position to the DP1 and DP2 inputs of the CT5001, and to combine the [C] key with the power-on reset circuitry for the CT5001.

Here at the Datamath Calculator Museum we use the DCM-50A Platform to Characterize and Reverse-engineer Single-chip Calculator Circuits. Many designs of electronic calculators do not use all features of their calculator brains and it would be difficult to unleash the full potential of the calculator chips in these cases. Additionally are electronic calculators "closed systems" with limited flexibility to measure signals, change voltages or clock frequencies, provide additional input keys or even change the display technology or specifications additional digits. Core idea of the DCM-50A is providing a generic platform to access all features of a single-chip calculator circuit and with the DCM-50A (PLAYGROUND) we increased the scope from Texas Instruments products to offerings from their competitors in the 1970s, namely AMI, Cal-Tex, Commodore/MOS Technology, Electronic Arrays, Frontier, General Instrument, Hitachi, Litronix, Matsushita, Mitsubishi, Mostek, National Semiconductor, NEC, Omron, RFT, Rockwell, Sharp, Toshiba, and Western Digital.

On our quest to document Mostek's MK6010 Chip and its many descendants like the MK5010, MK5011, MK5012 and Cal-Tex' CT5001, CT5002 and CT5012, we developed here at the Datamath Calculator Museum three additional tools for our DCM-50A (PLAYGROUND):

Comparing the Calculator Logic Implementation of the CT5001 chip retrieved from the featured the Unitrex 1200 (Type 27) with the Calculator Logic Implementation of the MK5011 used with the Unitrex 1200 (Type 37) calculator reveals only one subtle difference: Pressing the [C] or [CE] key lit up the display with all 12 digits showing '000000000000' with the CT5001 but '888888888888' with the MK5011. More importantly, all discovered Calculator Logic Bugs of the MK5011 are still present with the CT5001.

In a next step, we used a Logic Analyzer to compare the timing of the two single-chip calculator circuits and again, no differences. Even the pattern of how the MK5011 and CT5001 are "crashing" during a Divide by Zero operation is 100% identical.

In our final attempt, we decided to "decap" both the MK5011 and CT5001 chips salvaged from two Unitrex 1200 calculators and asked Sean Riddle to provide us with high-resolution images of the silicon die.

First surprise: The silicon die inside the MK5011 package is marked with MK6010.

Second surprise: The CT5001 chip looks almost identical to the MK6010 chip but wasn't manufactured by Mostek. It proudly states "CAL-TEX" instead of "MOSTEK" but analyzing its layout shows its PMOS transistors at the exact same positions with only minor "cosmetic" differences in the metal interconnections.

We assume that Cal-Tex was using a legal loophole to copy the MK6010 single-chip calculator circuit:

It was not before 1984, when the United States passed the Semiconductor Chip Protection Act (SCPA), introducing a sui generis form of "industrial copyright" for "mask works". The unique law protect the layout design from being copied but allow for reverse engineering, unlike the traditional copyright.

If you have additions to the above article please email: joerg@datamath.org.
